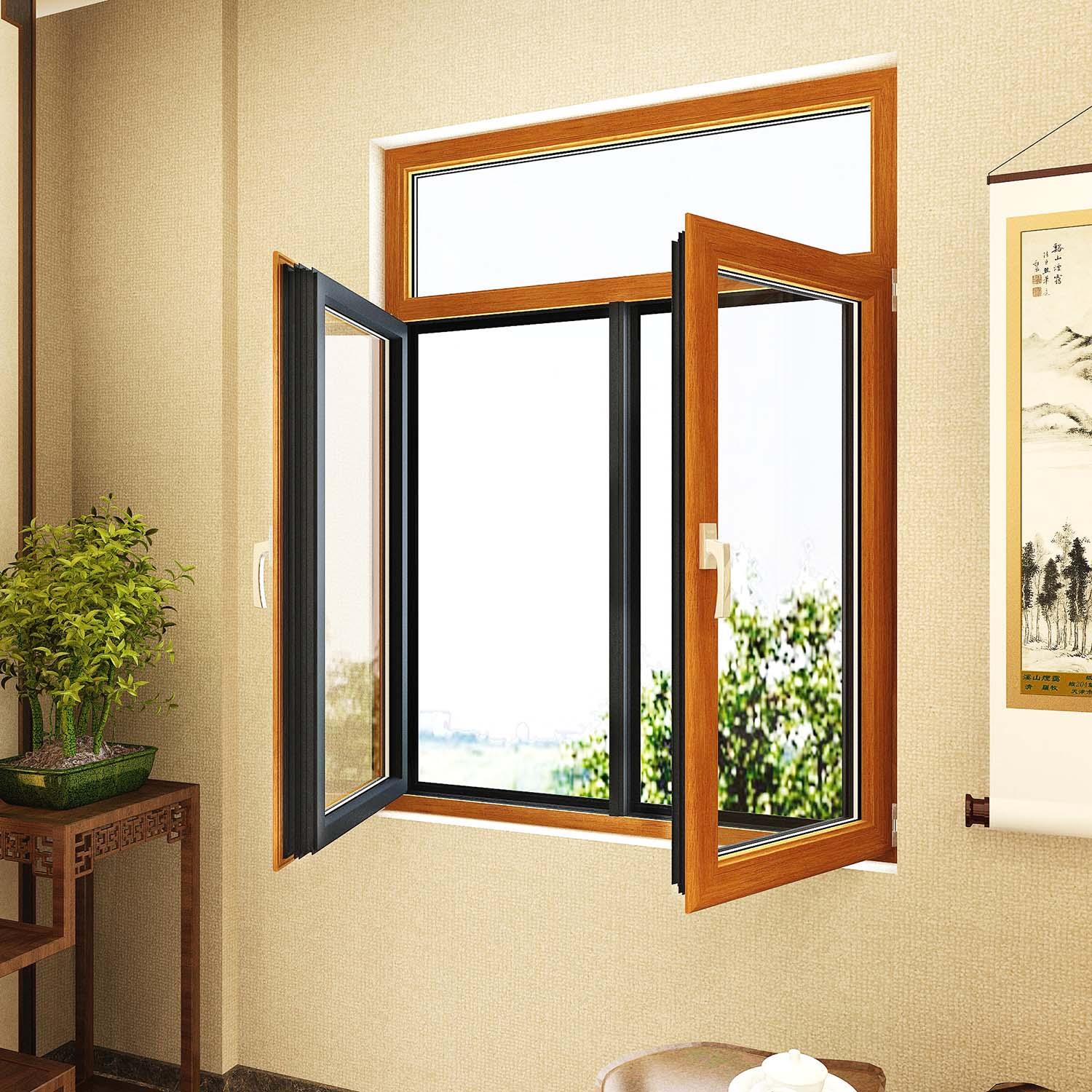

72 Aluminum Wood Thermal Break Inswing Casement Window
-

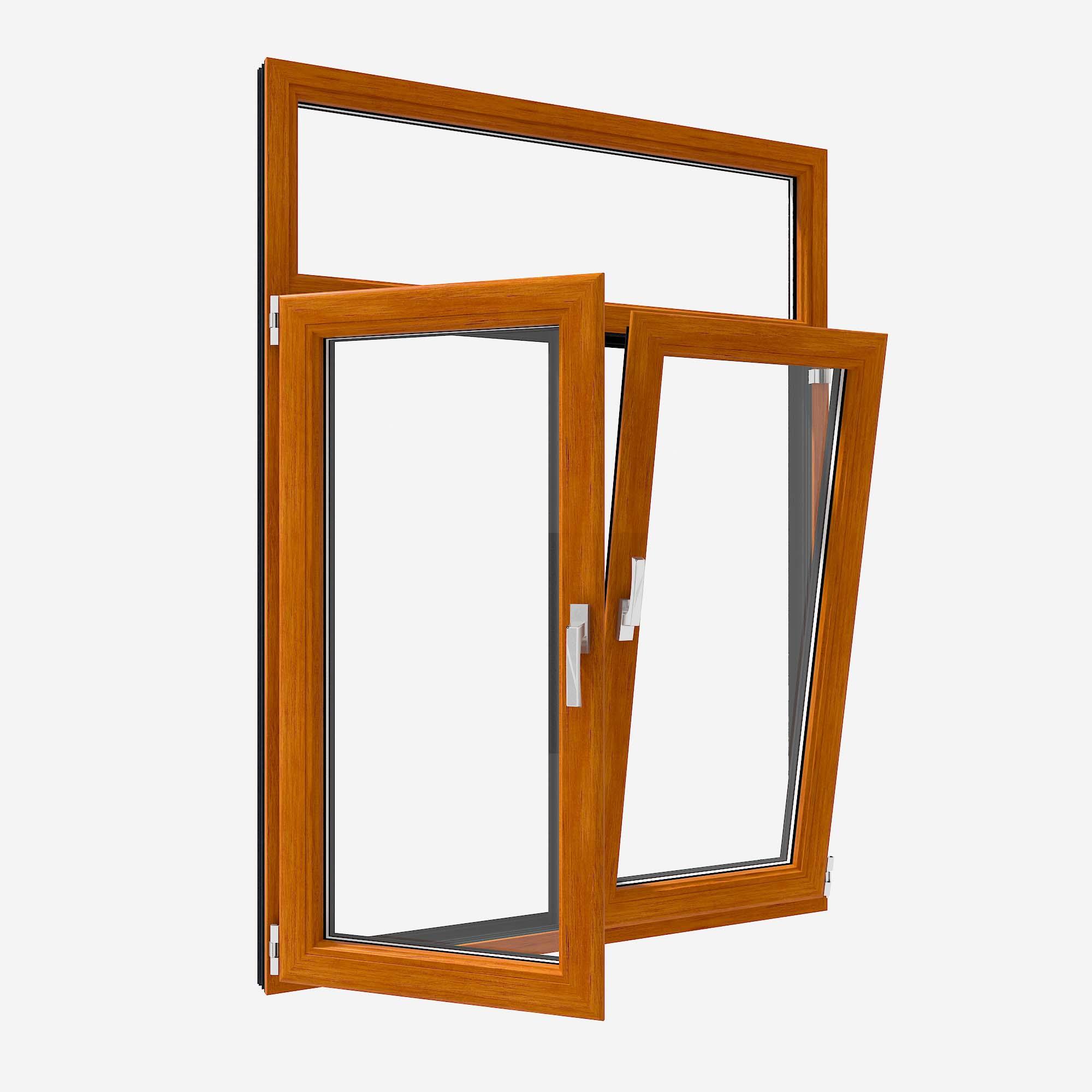

The 72 Aluminum Wood Thermal Break Inswing Casement Window is a European-style tilt-and-turn window that offers dual-mode operation — tilt-in for secure ventilation, or full swing-in for cleaning and emergency egress. The thermal break aluminum frame provides excellent energy performance in a versatile configuration.
Key Features
- The exterior aluminum and interior wood design offers a dual decorative effect. With Italian design style, the appearance is both fashionable and classic, with smooth lines. The product holds multiple national design patents and utility model patents

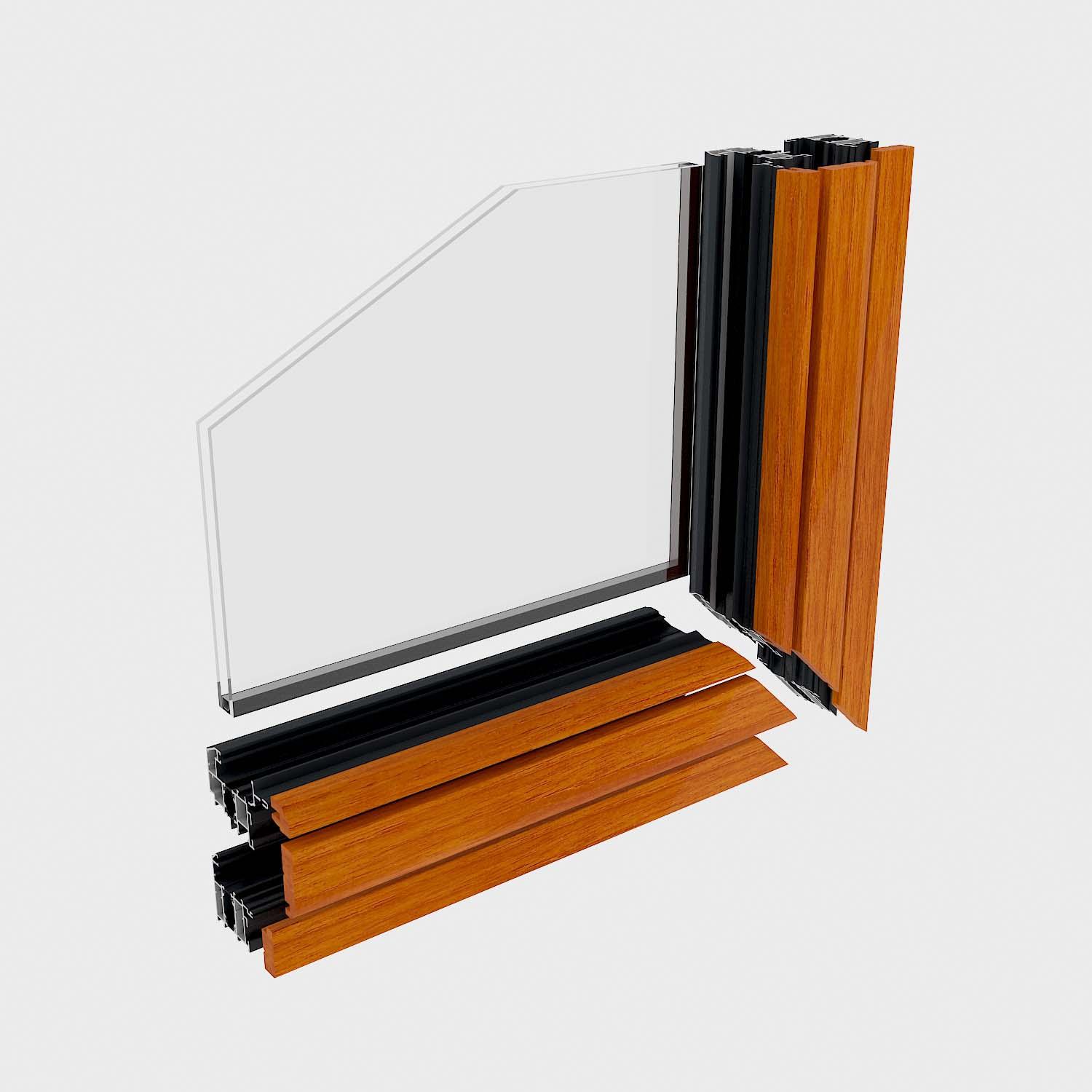

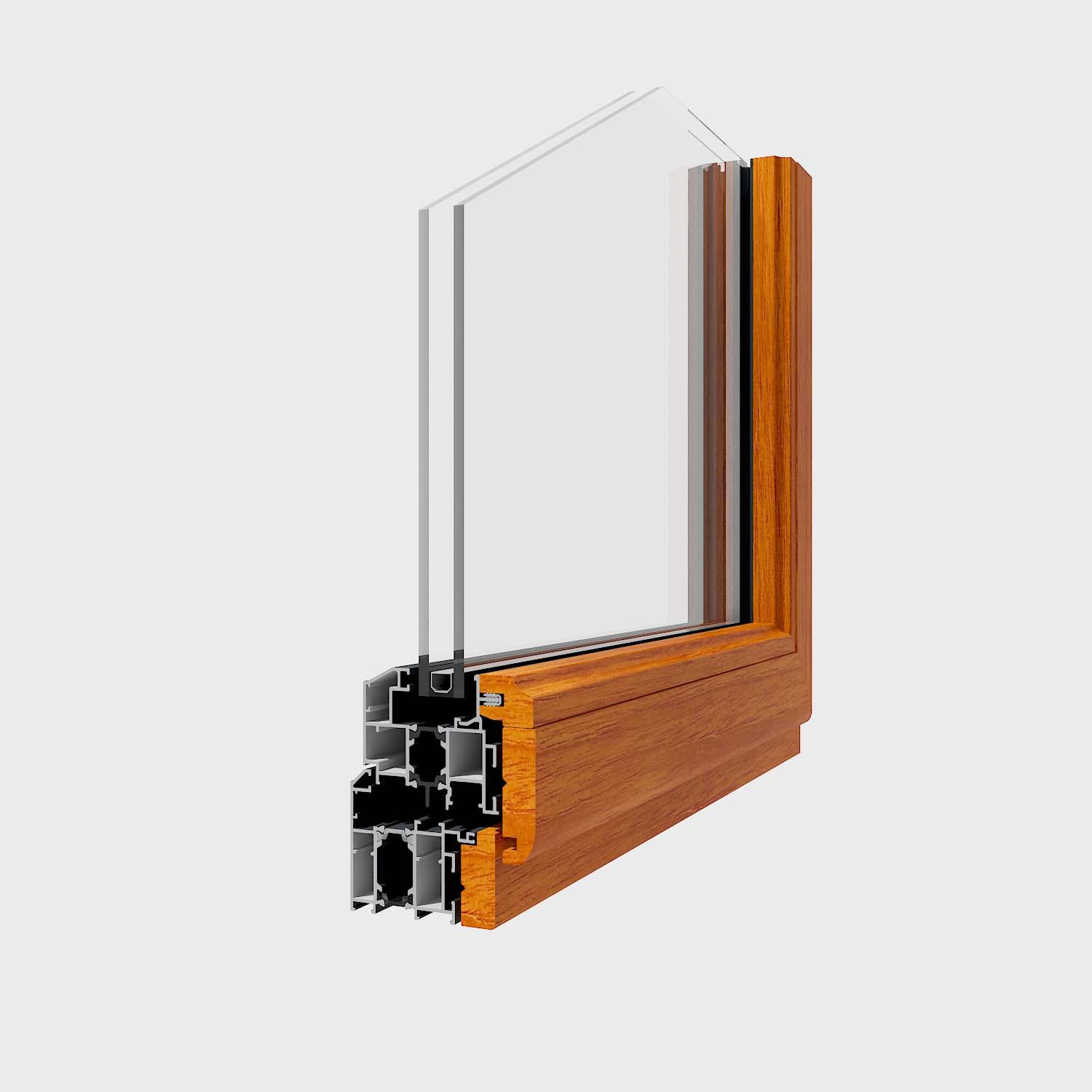

- Manufactured using German production techniques, the aluminum profiles and solid wood are connected by nylon clips, effectively addressing the technical challenge of different material shrinkage coefficients

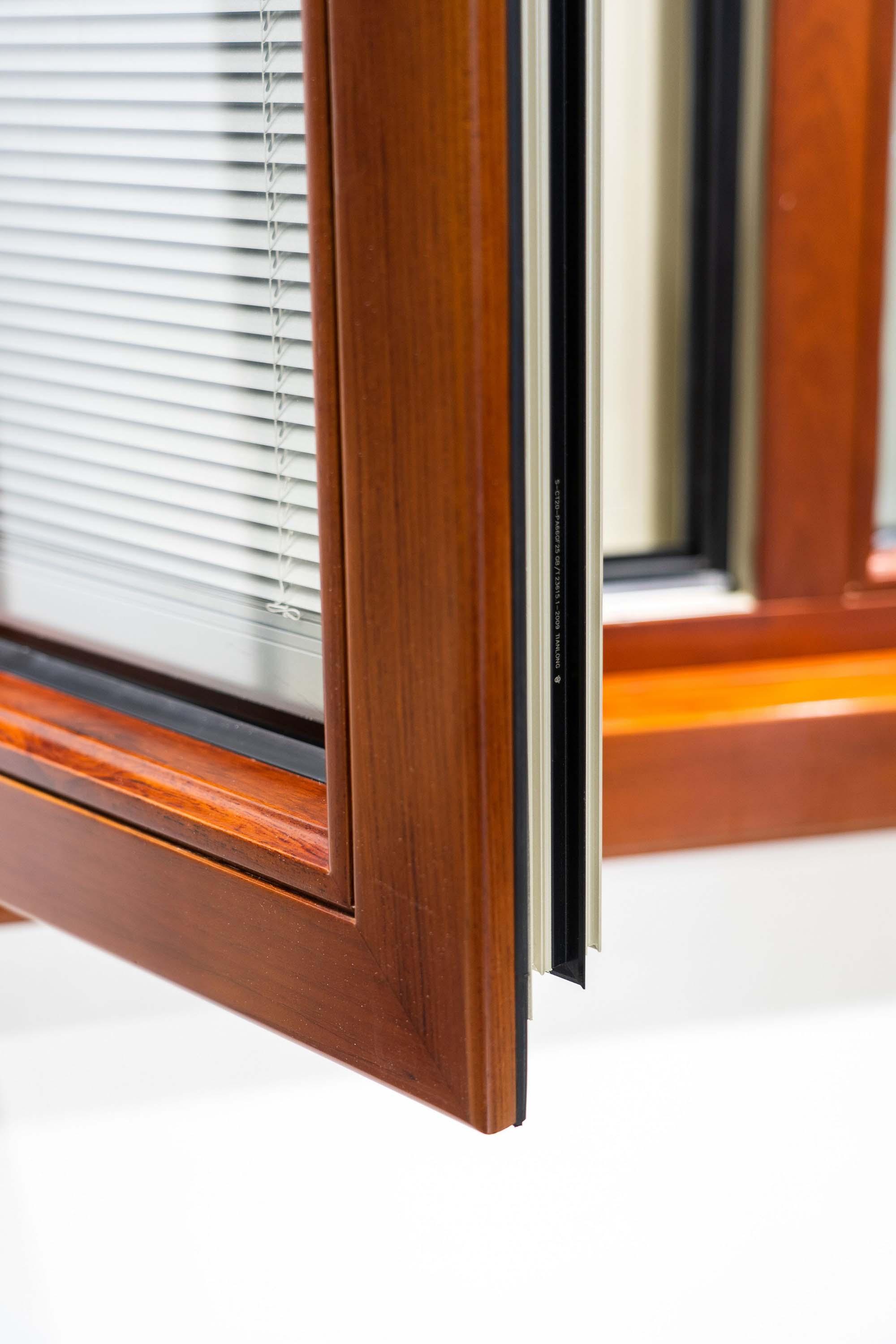

- The use of automotive-grade foam sealing strips ensures superior water-tightness, air-tightness, and sound insulation performance
Technical Specifications
| Frame Material | Extruded aluminum alloy, thermal break profile |
| Glazing | Double or triple insulated glass, low-E and tempered options |
| Weatherstripping | EPDM rubber gaskets, multi-line sealing |
| U-Value (typical) | 1.4–1.8 W/(m²·K) with double glazing; 0.8–1.1 with triple |
| Colors / Finishes | Matte black, charcoal, bronze, white, wood-grain, RAL custom |
| Custom Sizes | Manufactured to your finished opening dimensions |
| Lead Time | 30–45 days production + shipping (varies by destination) |
Full technical spec sheet — including detailed dimensions, glass options, hardware brands, and performance testing data — is available on request.
Typical Applications
- European-style residential projects with dual ventilation and full-open cleaning modes
- High-rise apartments where safety-limited tilt ventilation is preferred
- Master bedrooms and children's rooms requiring flexible air-flow control
- Retrofit installations replacing traditional inswing/casement units
Frequently Asked Questions
What is a tilt and turn window?

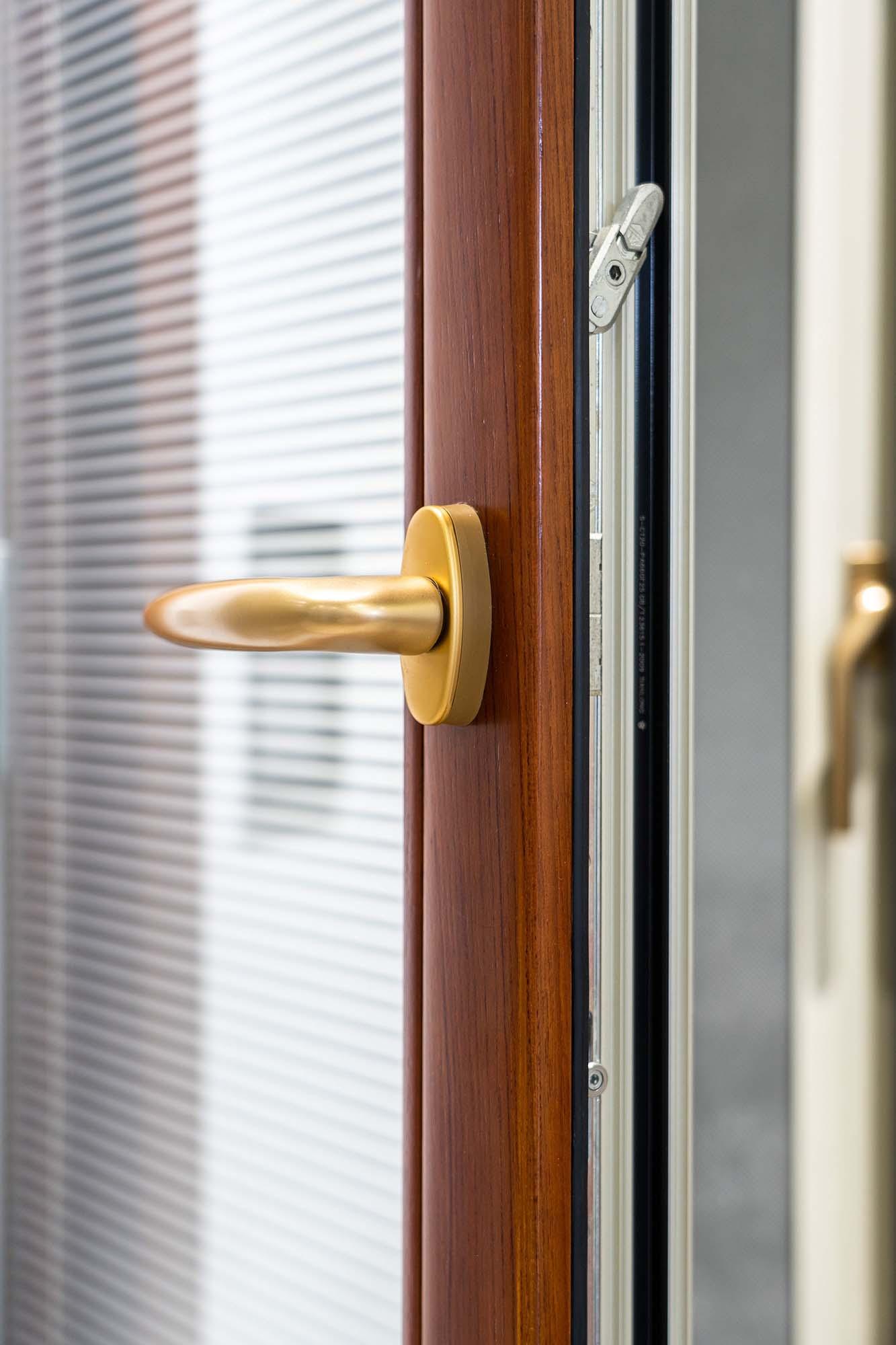

A single sash that can either tilt inward from the top (for secure ventilation) or swing fully inward from the side (for full opening or cleaning). One hardware set, two functions, controlled by handle position.
Is this suitable for high-rise buildings?
Yes. The tilt position offers safe, restricted ventilation ideal for upper floors and homes with children. Egress clearance in the turn position meets most residential codes.
How energy-efficient is this window?
Tilt-and-turn frames typically use a robust thermal-break profile. Combined with double or triple glazing, they achieve U-values comparable to fixed windows despite the operable hardware.
Can I clean the exterior from inside?
Yes. In the turn position the sash rotates fully inward, giving safe indoor access to both sides of the glass without needing a ladder or exterior scaffolding.
Are they available with concealed hinges?
Yes. Concealed hinge hardware is available for a cleaner exterior look. Standard configurations use exposed hardware for easier maintenance.
Request a Free Quote
Send us your project dimensions, quantity, and target color / finish. Our engineering team responds within 24 business hours with a detailed quotation and shop drawing.
Email: contact@todaywindowsdoors.com
WhatsApp: Chat with us
US$100~250
